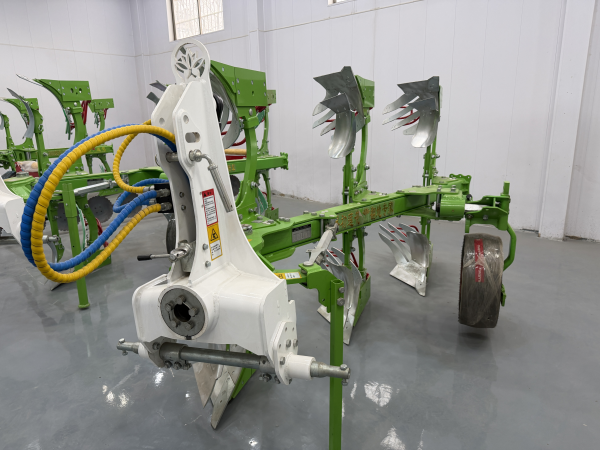

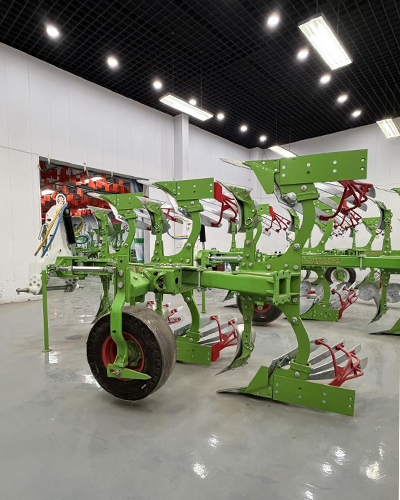

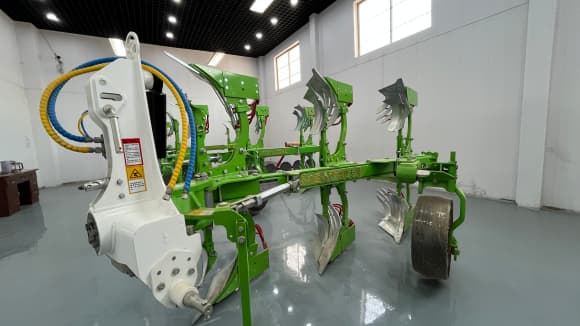

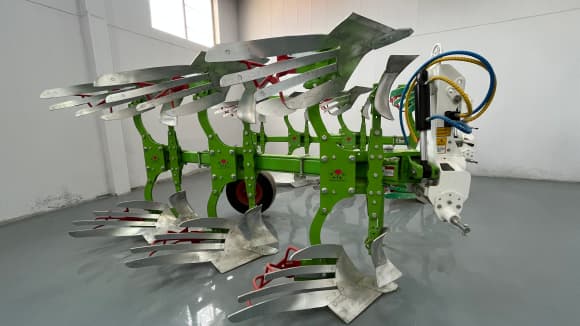

1LYFT-340 type hydraulic reversible plow

1LYFT-340 type hydraulic reversible plow

parameter table

1LYFT-340 Hydraulic Reversible Plow Product Technical Specification

Product Positioning:Basic Model, Efficient Entry-Level Solution

The 1LYFT-340 Hydraulic Reversible Plow is an entry-level model in the Yizemushen product lineup, designed for small farms, individual farmers, and first-time users of hydraulic reversible plows. Its core design philosophy is to significantly lower the financial and technical barriers for users adopting advanced tillage technologies through streamlined mechanical structures, intuitive operation interfaces, and a cost-effective total lifecycle maintenance solution, facilitating a smooth transition from traditional farming tools to modern, efficient agricultural machinery.

1.Structural Design: Simplified Yet Sophisticated Reliability Engineering​

This model adopts a single-beam articulated main frame, optimized through Finite Element Analysis (FEA) based on the ISO 730 standard load spectrum. While ensuring fundamental structural strength, this design minimizes the number of components and overall machine weight.

Frame Optimization:The main beam is formed in one piece using high-strength alloy steel, and key connection points are secured with anti-loosening pins and self-lubricating bearings to prevent frequent loosening during field operations and reduce routine maintenance needs.

Hydraulic System:Equipped with a single-acting hydraulic cylinder paired with a manual directional control valve, the system reliably achieves 180° plow body rotation. The operating pressure is set at 16–20 MPa, making it compatible with the hydraulic outputs of mainstream medium- and small-horsepower tractors.

2.Performance Features: Precisely Matching the Core Needs of Entry-Level Users​

Operational Convenience:The lifting, lowering, and flipping of the plow body are all controlled via the tractor’s hydraulic system with one-touch operation, eliminating the need for manual adjustments outside the cab.

The flipping mechanism adopts a gravity-assisted reset design, ensuring the plow body safely resets even when hydraulic system pressure is insufficient, thereby preventing jamming risks caused by operational errors.

Outstanding Cost Efficiency:The machine employs a modular design, allowing wear-prone parts to be replaced quickly, reducing repair time by 70% compared to traditional welding and patching methods.

Standard 65Mn steel quenched plowshares, with a hardness of HRC 55–58, offer a balanced combination of wear resistance and cost-effectiveness. A single set of plowshares can cover 800–1,000 mu under medium soil conditions.

Wide Adaptability:Supports a 3-furrow configuration, with adjustable furrow widths of 300–450 mm per share and a tillage depth range of 200–300 mm, meeting the primary dryland agronomic requirements for crops such as wheat, corn, and soybeans.

Compatible with tractors in the 120–150 HP power range, matching mainstream medium-sized models in the domestic market.

3. User Value: A Low-Risk Choice Tailored for Entry-Level Users

Reduced Initial Investment:Its Total Cost of Ownership (TCO) is approximately 60–70% that of mid-range models with similar specifications, offering a highly competitive entry-level option for budget-conscious users.

Simplified Operation and Maintenance:The operational logic is highly consistent with traditional mounted plows, allowing experienced operators to use it proficiently without additional training. The straightforward design results in lower failure rates and more easily diagnosable maintenance characteristics.

Strong Asset Residual Value:Thanks to its high reliability and broad market acceptance, this model typically demonstrates better resale value retention in the second-hand market compared to more complex machines in the same category.

4.Academic Perspective: The Agronomic Significance of the Entry-Level Model​

From the standpoint of agricultural mechanization promotion, the design of the 1LYFT-340 aligns with the needs of the “early majority” user group in the Diffusion of Innovations theory—these users approach new technologies cautiously and prioritize product reliability, trialability, and observable benefits. It achieves this by:

Retaining the core functions of hydraulic reversible plows (time-saving, uniform soil inversion) while streamlining value-added features of high-end models.Controlling the failure rate and maintenance costs, thereby successfully lowering the adoption barrier for hydraulic reversible plow technology and laying a foundation of trust for users to eventually upgrade to more advanced models.Through these measures, the product minimizes failure rates and reduces maintenance complexity.

The 1LYFT-340 Hydraulic Reversible Plow is not only the starting point of Yizemushen's product line but also the cornerstone of the company's commitment to “making innovation affordable and accessible to farmers worldwide.” Through precise engineering restraint, it achieves a key breakthrough in agronomic efficiency, serving as a rational initial investment choice for small farms and individual operators transitioning into the era of precision and high-efficiency farming.
