1LYFT-450 Hydraulic Reversible Plow Product Technical Specifications​

Product Positioning: Modular Multi-Function Precision Tillage Solution

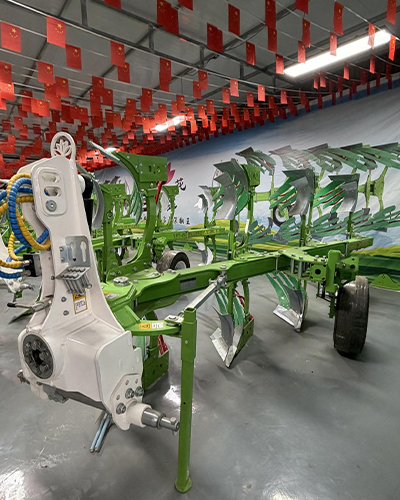

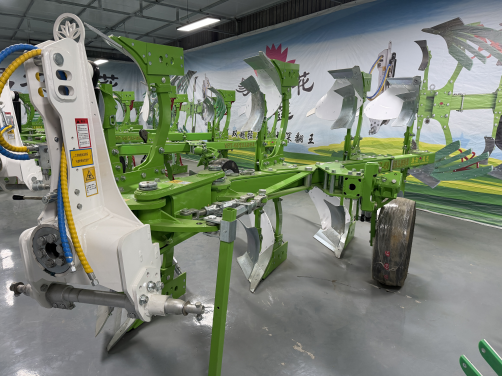

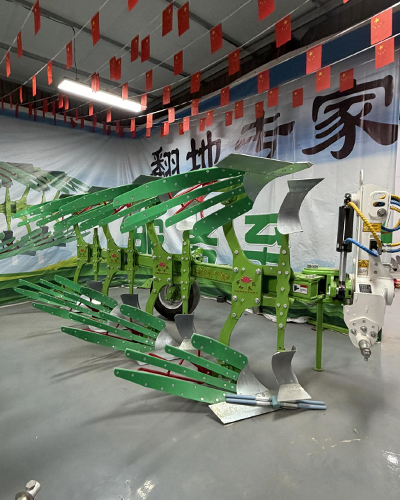

The 1LYFT-450 Hydraulic Reversible Plow is a platform-based flagship product introduced by Yizemushen for diversified agricultural operators. Through three modular structural configurations—single lead screw, dual lead screw, and side-shift types—it achieves full coverage from cost-sensitive users to professional customization needs. Developed on a unified foundational platform, this model meets precise alignment with different soil conditions, agronomic requirements, and economic budgets through interchangeable functional modules, redefining the value benchmark for mid-to-high-end hydraulic reversible plows.

1.Platform Architecture Design: Technical Pathway to Multifunctionality in a Single Machine

The 1LYFT-450 adopts a platform architecture design philosophy, enabling rapid interchangeability and combination of three major functional modules based on a unified foundational plow frame, hitch system, and hydraulic circuit.

Unified Foundation Platform:The main beam utilizes a fully welded structure made of High-Strength Low-Alloy (HSLA) steel, optimized through Finite Element Analysis (FEA) topology, achieving minimal weight while ensuring structural strength and reserving 20% strength redundancy for multifunctional expansion.

Standardized Interfaces:All three structural configurations employ the ISO 5687 standard quick-attach system, allowing complete structural conversion in field conditions within 2 hours without the need for specialized tools.

Hydraulic System Compatibility:The foundational hydraulic circuit supports synchronized control of double-acting cylinders. By switching modular control valve groups, it can adapt to the varying flow and pressure requirements of the three structural configurations.

2.Performance Matrix and Scenario Adaptation of the Three Structural Configurations

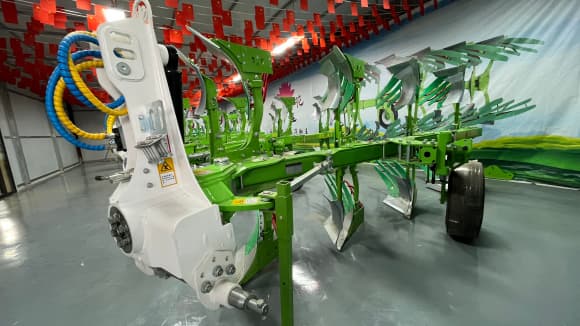

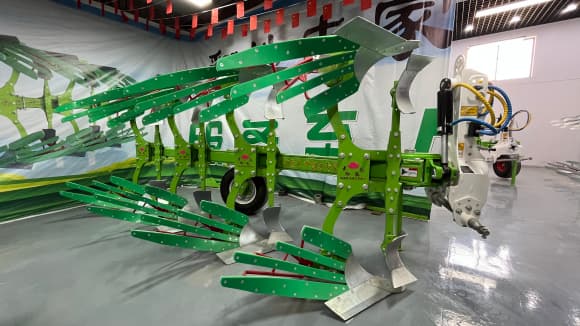

（1）.Single Lead Screw Economic Version

Core Features:Utilizes a 45CrMo alloy steel trapezoidal screw paired with a self-locking nut, featuring a simple structure and low maintenance cost.

Performance Metrics:Tillage depth stability variation coefficient ≤ 8% (ISO 5000 standard), suitable for conventional soil operations in plain areas.

Economic Advantage:Lowest acquisition cost among the three versions, 12% lower than the dual lead screw version, ideal for field crop growers sensitive to per-acre operational costs.

Adaptation Scenario:Suitable for annual deep tillage of field crops such as wheat and corn, compatible with 160-200 HP tractors.

（2）.Dual Lead Screw Precision Version

Core Features:Employs a dual lead screw synchronous drive system with torque evenly distributed via universal joints, equipped with an automatic tillage depth compensation device.

Performance Metrics:Tillage depth fluctuation controlled within ±1.5 cm (ISO 5000 standard), particularly suitable for complex conditions such as sloping land and heavy clay soils.

Technical Advantage:Repeat positioning accuracy is three times higher than the single lead screw version.

Adaptation Scenario: Ideal for precision seedbed preparation of cash crops such as tobacco and potatoes, compatible with 180-220 HP tractors.

（3）.Side-Shift Efficient Version

Core Features: Integrated hydraulic side-shift mechanism, enabling a maximum lateral displacement of 40 cm without interrupting operations.

Performance Metrics:Headland turning time reduced by 50%, operational efficiency improved by 15-20% (field-measured data).

Technical Breakthrough:Features a reinforced box-type side-shift unit design, increasing lateral rigidity by 50% to prevent structural deformation from long-term use.

Adaptation Scenario:Particularly suitable for large-scale contiguous field operations and work in confined spaces such as orchards and terraces, compatible with 200-240 HP tractors.

3. Academic Perspective: The Value of Modular Design in Agricultural Engineering

The platform-based design of the 1LYFT-450 exemplifies the innovative application of Product Architecture Theory in the agricultural machinery sector:

Maximized Commonality:The three configurations share 75% of common components, significantly reducing R&D, production, inventory, and after-sales costs.

Performance Scalability:Through the standardization of modular interfaces, advanced functional modules such as intelligent tillage depth control and variable-rate tillage can be rapidly integrated in the future.

Precise Demand Matching:It effectively addresses the inherent conflict between “mass production”and “personalized needs”in agricultural machinery, delivering nearly customized solutions through finite modular combinations.

The 1LYFT-450 Hydraulic Reversible Plow is not only a concentrated reflection of Yizemushen's technological capabilities but also a precise response to the modern trends of agricultural diversification, refinement, and efficiency. Through its innovative platform architecture, it successfully achieves the product positioning of "one foundational model, three specialized solutions," offering users a comprehensive range of choices from economic and precision to high-efficiency performance, thereby redefining the value benchmark for mid-to-high-end hydraulic reversible plows.
